Lowboy Trailers — 30 to 150 Ton
For the Heaviest Iron
and the Tallest Loads.
Custom lowboys engineered around your equipment, your routes, and the weight you actually move.

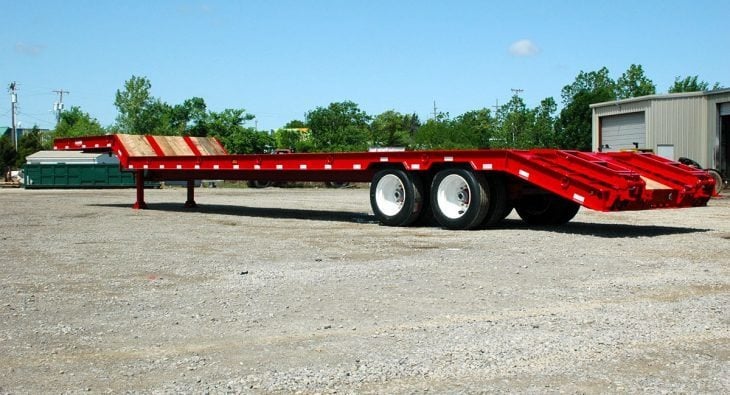

About Lowboy Trailers
Why lowboys exist
Lowboys exist because standard flatbeds can't legally haul tall equipment. The 13'6" federal height limit leaves you short on a flatbed once your equipment clears 9 feet on its own tracks or wheels. A lowboy's dropped center deck sits 18 to 24 inches off the road — half the height of a flatbed deck — which gives you clearance for tall excavators, dozers, cranes, transformers, and industrial equipment that would otherwise require a permit route or specialty hauler.
Lowboy Specs
Configurations &
options.
Every Overbilt lowboy is engineered around your load.
-
Capacity: 30, 40, 50, 60, 75, 100, 125, 150 ton
-
Gooseneck Styles: Fixed, removable mechanical, or hydraulic detachable (HDG)
-
Deck Length: 24–53 ft (custom available)
-
Axles: 3 to 8; spring, air ride, or self-steering
-
Deck Styles: Flat center deck, beavertail, custom drop configurations
-
Options: Outriggers, flip-axles, jeep dollies, boosters, load ramps, hydraulic power packs, removable side rails, custom paint
29+
Years Manufacturing Lowboy Trailers
100%
USA Built
150 Ton
Max Capacity
Choosing Your Trailer
Who buys Overbilt lowboys
-
Heavy haul trucking companies
-
Oil and gas operators
-
Utility contractors moving transformers and switchgear
-
Mobile power generation companies
-
Construction contractors running D8-class dozers and mid-to-large excavators
-
Specialty haulers moving industrial equipment
-
Customers who need a trailer that will work hard for 20 years and won't fail under load.
What makes ours different
Every Overbilt trailer is built by a single craftsman from frame-up through final inspection. When you're hauling 150,000 lb of equipment down a mountain grade, you want to know the welds were done right and the axles are aligned true. With Overbilt, the person who built your trailer is accountable for every detail of the build — no assembly line, no hand-off between shifts, no unsigned work.
We spec the gooseneck, the axle count, the deck height, and every custom feature around your actual equipment and your actual routes. That's how you get a lowboy that does the job for decades instead of needing a rebuild in five years.
"
The 50-ton trailers have been reliable and strong for our mobile substation builds. They safely handle heavy equipment and perform well during transport and field use. Overall, they are a dependable asset for our EFRAC program.
Travis Hays, Director of EFRAC Design & Implementation, Fusion Industries, LLC
Our Products
Looking at other trailer types?

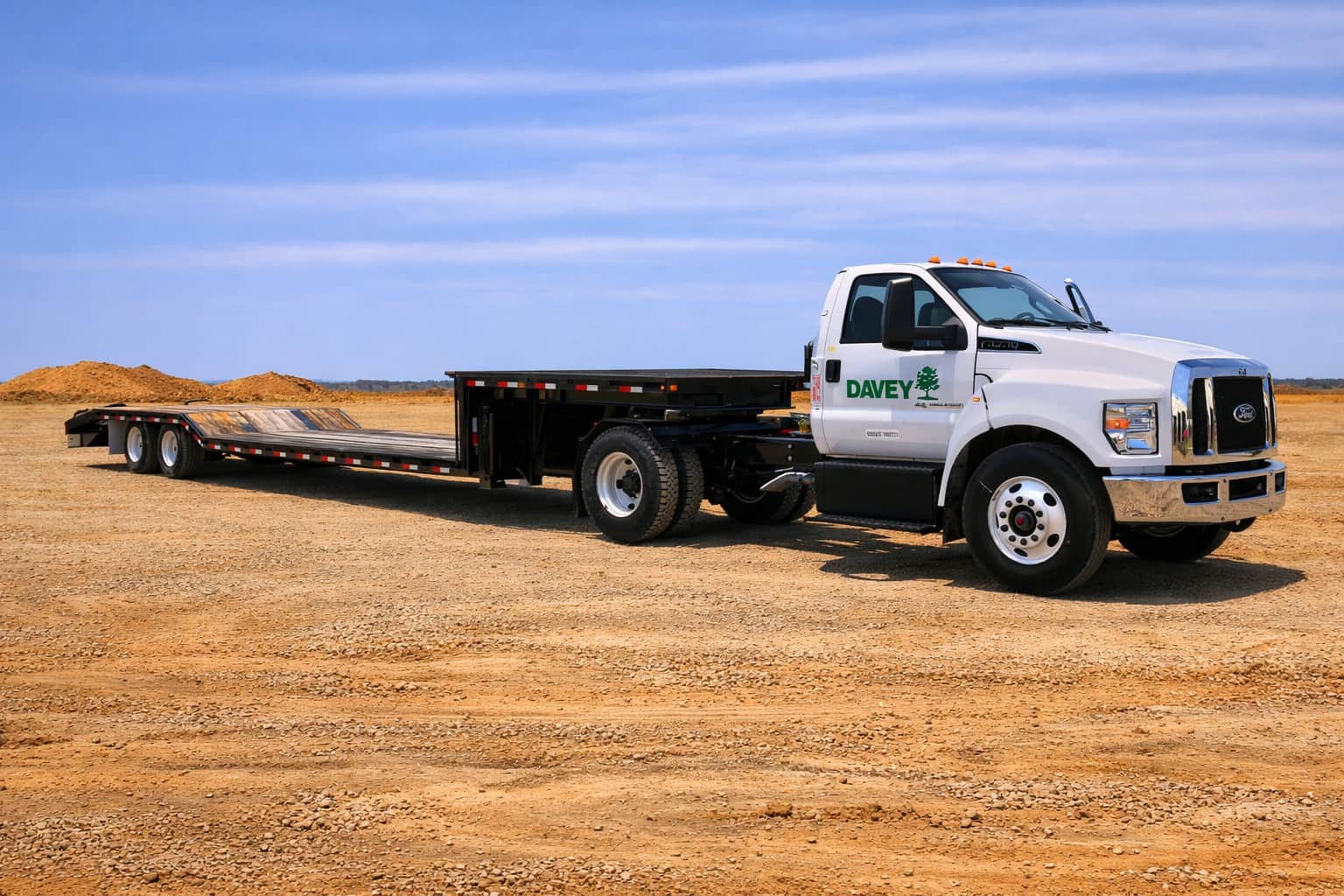

Gooseneck Trailers
10–60 ton. More capacity than a tag-a-long without going lowboy.
View Gooseneck Trailers
Custom & Specialty
Beyond standard configs. Industrial, oversize, one-off builds.
View Custom TrailersGet a Quote on a Custom Lowboy
Send us your equipment list, typical routes, and any custom requirements. We'll quote your spec and give you a real lead time — not a catalog ship date.
